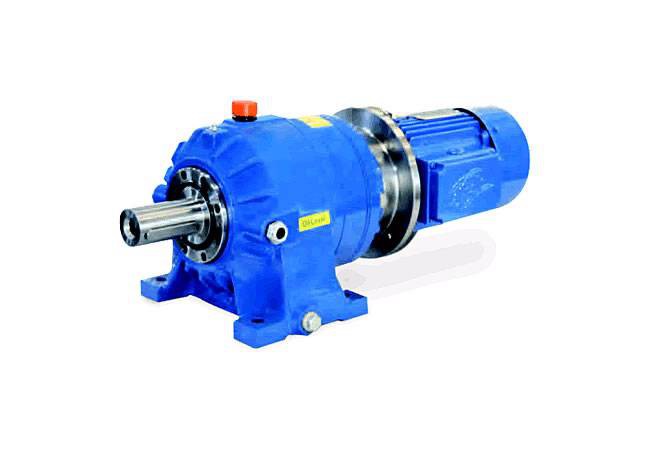

SERIES PL - PLANETARY GEARED MOTOR

RADICON POWERBUILD range of smart Planetary Geared motor and Reducers provide an ideal solution for inline and right-angled applications which require high ratios upto 2,500:1 in a limited space. The current product range covers 65,000 N-m. The product has a range of options on the output side to suit the customer needs.

Unit Sizes	PL- 01, 02, 03, 05, 08, 12, 16, 25, 40, 65 PR- 01, 02, 03, 05, 08, 12, 16, 25, 40, 65
Input Power	Up to 90kW
Output Torque	Upto 65,000 N-m
Gear Ratios	3.6:1 to 3200:1- Single/Double Reduction
Output options	Output shaft with keyway. Hollow output shaft to suit connection with shrink disc. Output shaft with external spline. Output shaft with internal spline.
Motor Sizes	IEC Frames from 90 to 200

Input Versions: Geared motor, Motor-mount Reducer for IEC Motor and Reducer unit with Solid input shaft.
Output Options: Solid Shaft (Single/Double) and Hollow Shaft.
Motor Options: Includes motors of types Standard, Brake, Flame-proof, Crane-duty.

Conveyors
Cranes
Crushers
Extrusion
Gantry Crane
Hoist Application
Mixers
Moulding
Overhead Crane
Sand Mullers
Scrapers
Agitation
